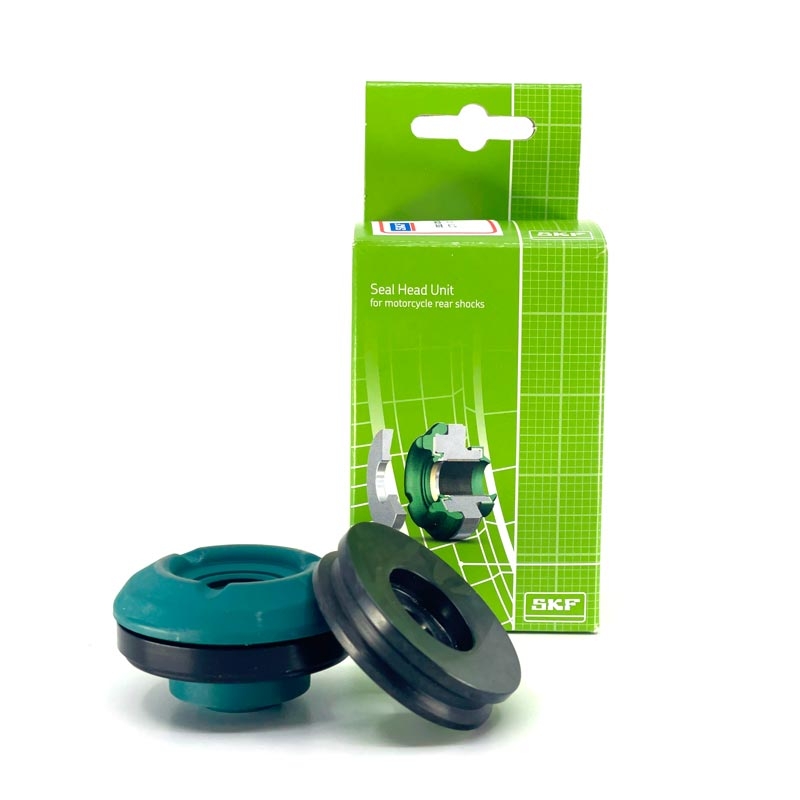

Shock seal head unit SKF KAYABA SH2-KYB1650 shaft 16mm piston 50 mm
Odpowiedni dla marek:
- BETA
- HONDA
- KAWASAKI
- SUZUKI
- TRIUMPH
- YAMAHA
Complete motorcycle rear shock seal head unit by SKF. Fully assembled unit with premium sealing components. Guarantees ultra-low internal friction, ma
The innovative SKF shock seal head unit for the rear shock absorber is designed to enhance suspension performance and increase durability over time. This product represents a unique and compact solution to maximize stroke and minimize the shock absorber length. The traditional design has been revolutionized by integrating multiple components into a much simpler kit, a one-part solution that facilitates logistic efforts as well.
The new static outer diameter seal design allows easier assembly and removal. The material used is a specially developed NBR compound suitable for temperatures of -40°C to +140°C, ensuring robust sealing over a wide temperature range.
Key Features
- Compact Design: Integrates multiple components into a simplified one-part solution to maximize stroke and minimize shock length.
- Easy Assembly: New static outer diameter seal design allows for straightforward installation and removal.
- High-Performance NBR Compound: Specially engineered material rated for temperatures from -40°C to +140°C ensuring robust sealing.
- Friction Reduction: Plastic back-up ring minimizes friction and wear under high operating pressures.
- Enhanced Rebound Control: Features an all-new rebound bumper and proprietary mating plate for smoother feedback and increased comfort.
Technical Specifications
- Product Type: Shock Seal Head Unit
- Manufacturer: SKF
- Sealing Material: Special NBR compound
- Temperature Range: -40°C to +140°C
- Kit Components: Seal head, back-up ring, rebound bumper, and mating plate
Dane techniczne:Net Weight (Kg): 0.20
Rodi Diameter (mm): 16.00
Piston Diameter (mm): 50.00
Shock seal head unit SKF KAYABA shaft 16mm piston 50 mm Obecnie nie mamy tego produktu na stanie, ale można go zamówić.
